Imashini yo guzingira umugozi wo kurwanya
Intangamarara y'igicuruzwa

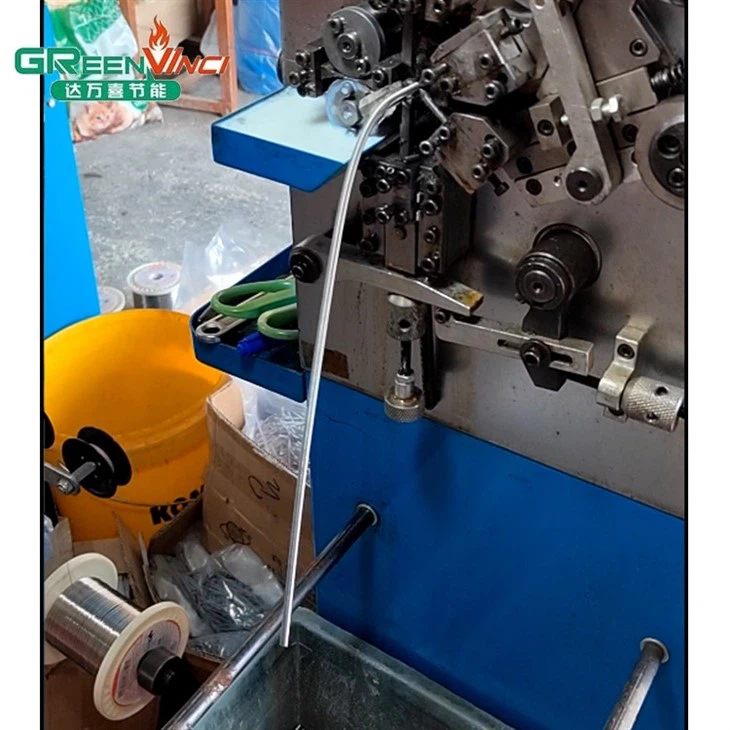

Igikoresho co guzingira umurongo w’ivyuma ni igikoresho cikora kizingira umurongo w’ivyuma mu buryo bw’uruzitiro kugira ngo hakorwe ibintu bishushanya. Iryo mashini rishobora gutegurwa kugira ngo rice ubwaryo iyo nzira imaze gushika ku burebure bumwe canke uburebure bw’uruzitiro.
Ni vyiza mu gutunganya intsinga zo gushushanya zikoreshwa mu bikoresho bitobito vyo mu nzu no mu bikoresho vyo gushushanya vyo mu nganda, nk’ivyo biboneka mu bikoresho vyo guteka umuceri, mu bikoresho vyo gushushanya vy’amakarata, no mu bikoresho vyo gushushanya vy’uruzitiro rushushe.
Igishushanyo c'ubuhinga
|
Ugutanga amashanyarazi |
Ivyoroshe 220V\\50Hz\\0.6kW |
|
Gutanga umuyaga |
0,5 ~ 0,7 MPa |
|
Ubwoko bwo gukata |
Igikoresho c'imirongo ibiri |
|
Ishobora gukoreshwa mu gupfunyariza imbere mu murongo |
Φ1.0mm~Φ6.0mm(guhindura n'umugozi) |
|
Ishobora gukoreshwa ku bijanye n'uburebure bw'urutsinga rwo kurwanya |
Φ0.1mm~Φ1mm |
|
Moteri y'umurongo mukuru |
370W(Incuro zihindurwa) |
|
Moteri y'uruziga |
90W(Umuvuduko ushobora guhindurwa) |
|
Ingano |
750×600x1650mm |
|
Uburemere |
Ibiro 175 |
|
Ugushikama kw’uruzitiro ni 2% (bibereye ku muvuduko w’uruzitiro rwa 800-1000 rpm, kandi uguhangana kw’urutsinga rwo gushushanya bisabwa kugira ngo kube ukuri; ahandi ho, ukuri kuzogira ico gukoze. |
|
Ibisobanuro vy'ibicuruzwa
1. Ubuhinga bw'ukuri:
Imashini y'urutsinga rwo kurwanya ikoresha ubuhinga bubereye. Ikoreshwa n’igikoresho gikora ku mubiri n’igikoresho co guhindura amakuru gifise umuvuduko munini nk’ibintu bigenzura, igenzura neza uburemere bw’ibintu mu gihe c’uguzunguruka kw’intsinga.
2. Ibikorwa vyikora:
Gusa n’uwushizeho ubushobozi bwo guhangana n’ibintu wipfuza be n’ibindi bijanye navyo ku gicapo gikora ku mubiri, maze iyo mashini ica ihita ipfuka umuyaga. Iyo resistance canke uburebure bwategekanijwe bushitse, iraca ica iyo nsinga maze igasubira gukora, ivyo bikaba bituma ikora ubudasiba.
3. Gukora vyinshi:
Iyi mashini ishobora kwakira intsinga zitandukanye, kuva kuri 0.1mm gushika kuri 1mm, igashika ku gukoreshwa mu buryo bwinshi no gukora neza cane.
4. Ukwizera uburyo:
Ivyo bikoresho birahagarara ubwavyo iyo habaye ubukene bw’intsinga, iyo intsinga zivunitse canke iyo igitigiri c’ivyo bikoresho cari carategekanijwe kigeze.
5. Ukoresha-Ikigaragara c'ubugenzi:
Iyi mashini ifise user-interface ya PLC, ituma abayikoresha bashobora kugenzura no kugenzura bitagoranye ingene ivyuma bigenda. Ivyo bituma bigenda neza kandi bikaba bituma umuntu ashobora guhindura ningoga uko bikenewe.
Uburyo bwo gukora igicuruzwa
Iyi mashini y’uguzingira umugozi w’urutsinga rworoshe gukoresha; gusa ukurikize intambwe zikurikira.
1. Gushiramwo Intsinga Mu buryo Butekanye: Shira neza intsinga isaba guzingira mu mashini, urabe ko ikomeye mu kibanza cayo kugira ngo ntihagire ikintu na kimwe kiyitera nabi mu gihe co kuyizingira.
2. Gutunganya Mandrel n’Ikiziga: Gutunganya neza neza igihimba c’umubiri n’ikiziga bishingiye ku vyo umugozi uvuga. Suzuma kabiri-iyi mitunganyirize kugira ngo wemeze ko ihuye n'ibikenewe.
3. Gushinga amaparametere no kuyabika: Gutunganya porogarama y’imashini n’amaparametere akenewe ku bijanye n’igikorwa co guzingira. Bika ivyo bipimo, ubone ko imashini ifise ubushobozi bwo kubika ibice 40 vy’umwihariko kugira ngo uzobikoreshe muri kazoza.
4. Gutangura Guzingira Ivyuma: Gutangura igikorwa co Guzingira Ivyuma vy’Ivyuma, bituma imashini ikora neza kandi neza.
5. Kwemeza uburyo: Inyuma y’aho ivyuma bizunguruka birangiriye, nukore isuzuma ryiza kugira ngo wemeze uburebure n’uburebure bw’umurongo w’igikomere. Raba neza ko izo ngero ziri mu rugero rwo kwihanganira ±1, ukurikije ibisabwa vyawe bikomeye.
Davinci Machine imaze imyaka irenga 15 ikora ibikoresho vyo gushushanya. Igikoresho cacu co gukingira umurongo w’urutsinga rwo kurwanya gica mu kugenzura gukomeye kw’uburyo kandi gishobora guhindurwa bivanye n’ivyo umukiriya asaba. Turashobora kandi kohereza abahinga mw’ihinguriro ry’umukiriya kugira ngo bafashe mu gushiramwo ibikoresho no kubishira mu ngiro, kugira ngo ivyo bikoresho bikore neza mw’ihinguriro.
Imisoro ishushe: Igikoresho co gukingira umurongo, Ubushinwa abahinguzi, abaguzi
